BP600W inverter has no voltage output after power on but the fault light does not light up
Model
BP series pure sine wave inverter 600W 12VDC 220VAC
Description
After power on, the fault light does not light up and there is no output voltage.
Analysis of the possibility of the cause

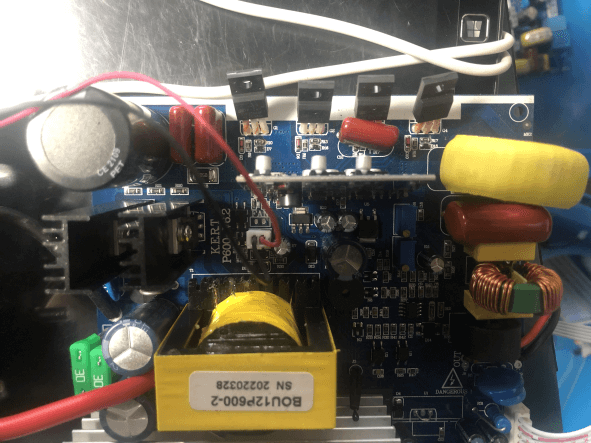

1. Check the internal circuit, the rear part is damaged.
2. In addition to the damage of the rear MOSfet and the rear driver board, the corresponding drive resistor and diode are damaged this time.
Solutions and steps
Replace the above damaged components.
